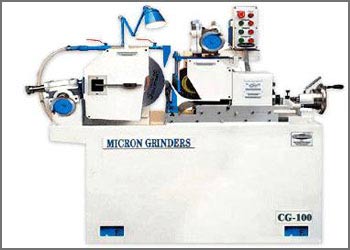

Centerless Grinding Machine
Item Code - CG-100
Centerless
Grinding Machine CG-100 are economical and simple in operations and
include variations like CNC Centreless Grinding Machine. Featuring precision designed finish for achieving
superior through-feed and in-feed Grinding applications. These Grinding
and Regulating wheels come with heads that are fitted with precision
(ISO-P4) antifriction bearings so as to achieve optimum process accuracy
and service life.
Centerless Grinding Machine is Used for
- Shouldered Pins
- Transmission Bushings
- Ceramic Shafts For Circulator Pumpsused in Home
- Heating
- Valve Seal Inserts
- Aerospace Fasteners
- Dowel Pins
Salient Features
It is designed
for both through feed and infeed Grinding. Grinding wheel and Regulating
wheel head fitted with high precision (ISO-P4) antifriction bearings in
grinding wheel head for running accuracy and long life. The dressing
slides mechanically operative and are hardened and ground. The Screw
threads hardened and ground and spindles as well. Grinding wheel duly
balanced.
| Standard
Equipments |
Extra
Attachments |
| One Grinding Wheel
|
Microfeed-fine
adjustment for depth of cut |
| Machine Lamp |
Bush Bearing for
Grinding Wheel Head |
| One Regulating
Wheel |
Spare Wheel Flange
|
| Grinding Wheel
Pulley Puller |
Vibratory Feeder
|
| Splash Guards
|
Magnetic Coolant
Filter |
| Grinding Wheel &
Regulating Wheel Nut Spanner |
Wheel Balancing
Stand with Arbour |
One Rotary Dresser
Plunger
|
Bar Feeder for
long Bars Grinding |
| Toolkit |
Special Work Rest
Blade |
| Two Truing Devices
|
Anti-Vibration
Pads |
| Hand Pump
Lubrications for slides |
Template truing
slides for profile dressing. |
| Grinding Wheel
Puller |
Star-delta motor
starter for grinding head. |
| Work Rest Blade
for Through Grinding |
|
Technical Specifications
|
Grinding Capacity
| Diameter |
Min. 1mm
Max. 75mm |
Grinding Wheel
| Diameter |
350mm |
| Width |
100mm |
| Bore |
152mm |
| Speed |
Min. 1750 R.P.M.
Max. 2000 R.P.M. |
Regulating Wheel
| Diameter |
225mm |
| Width |
100mm |
| Bore |
76mm |
| Speed |
Min. 18 R.P.M.
Med. 40 R.P.M.
Max. 100 R.P.M. |
| Tilting Angle |
5°
-2° |
|
Power Requirements
| Grinding Wheel
Motor |
5.5/7.5 KW/HP |
| Regulating Wheel
Motor |
0.75/1.0 KW/HP
|
| Coolant Pump Motor |
0.12/0.16 KW/HP
|
| Magnetic Separator |
0.25 HP |
Dimensions & Weight
| Length |
1650mm |
| Width |
1050mm |
| Height |
1525mm |
| Net Weight Approx. |
1625 Kgs. |
|
|
