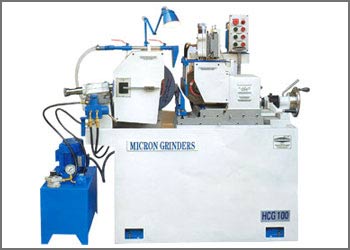

Automatic Centerless Grinder
Item Code - HCG-100
Automatic Centerless Grinder HCG-100 made available by us
are precision centerless grinding machines that are economical as well
as simple in operations. Designed for both through-feed and in-feed
grinding applications, these come with precision (ISO-P4) antifriction
bearings that are placed in grinding wheel head for achieving superior
running accuracy as well as longer service life.
Automatic Centerless Grinder is Used for
- Auto Parts,
- Motor Cycle Parts
- Bearing
Industry
- Pins Industry
- Bush Industry
- Bolt Industry
Salient Features
The precision centerless grinding
machine is most economical and very simple in operation. Automatic
grinding machines are designed for both
through feed and infeed grinding. Grinding wheel and regulating wheel
head fitted with high. We also offer Centerless Grinder - HCG 150
precision (ISO-P4) antifriction bearings in grinding wheel head for
running accuracy and long life. The dressing slides hydraulically
operative and are hardened and ground. The screw threads hardened and
ground and spindles as well. Grinding wheel duly balanced.
| Standard
Equipments |
Extra
Attachments |
| One Grinding Wheel |
Microfeed-fine
adjustment for depth of cut |
| Machine Lamp |
Magnetic Coolant
Separator |
| One Regulating
Wheel |
Wheel Balancing
Stand with Arbour |
| Coolant pump with
tank |
Anti-Vibration
Pads |
| Grinding Wheel
Pulley Puller |
Gearless Hydraulic
Motor for Regulating Wheel |
| Splash Guards |
Addition Wheel
Flange |
| Grinding Wheel &
Regulating Wheel Nut Spanner |
Auto Ejector/
Lifter for infeed grinding |
| One Rotary Dresser
Plunger |
Addition Work Rest
Blade |
| Toolkit |
Bar Feeder for
long Bars Grinding |
| Two Truing Devices |
Star-delta motor
starter for grinding head |
| Hand Pump
Lubrications for slides |
Automatic Feeder
for through-feed grinding |
| Grinding Wheel
Puller |
AC variable speed
Motor for Regulating wheel |
| Work Rest Blade
for Through Grinding |
Auto Infeed
Grinding |
|
Vibratory Feeder |
|
Automatic
Balancing of Grinding Wheel |
|
Template Truing
slides for profile dressing |
|
Bimetallic Bush
Bearing for Grinding Wheel Head |
Technical Specifications
|
Grinding Capacity
| Diameter |
Min. 1mm
Max. 75mm |
Grinding Wheel
| Diameter |
350mm |
| Width |
100mm |
| Bore |
152mm |
| Speed |
Min. 1750 R.P.M.
Max. 2000 R.P.M. |
Regulating Wheel
| Diameter |
225mm |
| Width |
100mm |
| Bore |
76mm |
| Speed |
Min. 18 R.P.M.
Med. 40 R.P.M.
Max. 100 R.P.M. |
| Tilting Angle |
5°
-2° |
|
Power Requirements
| Grinding Wheel
Motor |
5.5/7.5 KW/HP |
| Regulating Wheel
Motor |
.75/1.0 KW/HP |
| Coolant Pump Motor |
0.12/0.16 KW/HP |
| Hydraulic Motor |
0.05/1.0 KW/HP |
| Magnetic Separator |
0.25 HP |
Dimensions & Weight
| Length |
1775 mm |
| Width |
1050 mm |
| Height |
1620 mm |
| Net Weight Approx. |
1750 Kgs |
|
|
